Man in
the Middle
"Plug&Play" solution
The spot control on heating, ventilation, and air conditioning system components.
Architecture
The Man in the Middle solution is ideal when you can’t or don’t want to modify the existing control system or for a Proof Of Concept (POC) pilot project.
What can Enerbrain do for me?
1. INSTALLATION COORDINATION
The (eSense) sensors are positioned in the environment to monitor the T, RH, CO2 and the controllers (eNode – ePLC) are chosen for the type of system, then installed. A custom solution to meet your own personal requirements Enerbrain can install eMeters for the utility to be monitored.
2. CLOUD ACTIVATION
There the data received from the Enerbrain devices can be displayed using the Web App.
3. OBTAINING RESULTS
The implementation maintains comfort with the maximum efficiency.
Implementation
The Man In the Middle solution interfaces directly with the components of the system in the field.
How does Enerbrain interact with the system?
There are two options:
Option 1: Local integration with eNode
eNode + eSense + Cloud
eNode is an IoT controller used to control the components of an existing heating, ventilation and air-conditioning system (valve, damper, fan, etc.).

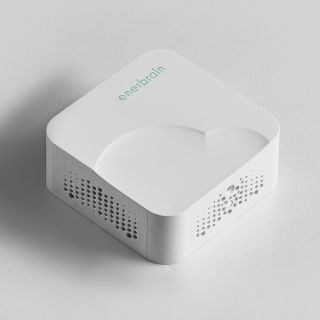

eSense is an ambient sensor that monitors T, RH, CO₂.
The Cloud sends commands to the system components using the following input: the desired settings for the building, a series of external variables and the conditions monitored by eSense in real time.
Option 2: Local integration with ePLC
ePLC + eSense + Cloud
ePLC is an IoT controller that interacts directly with the machine controllers (the PLC onboard the machine).
eSense is an ambient sensor that monitors T, RH, CO₂.
The Cloud sends commands to the system components using the following input: the desired settings for the building, a series of external variables and the conditions monitored by eSense in real time.
ePLC
eSense
Application
An example of a Man in the Middle architecture application follows.
